Hardware Pinouts

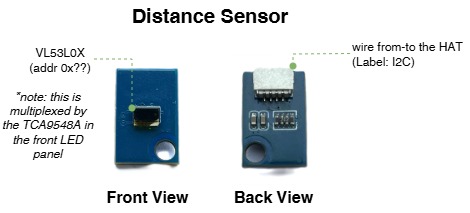

Distance sensor

Inertial Measurement Unit (IMU)

mpu6050

TBA

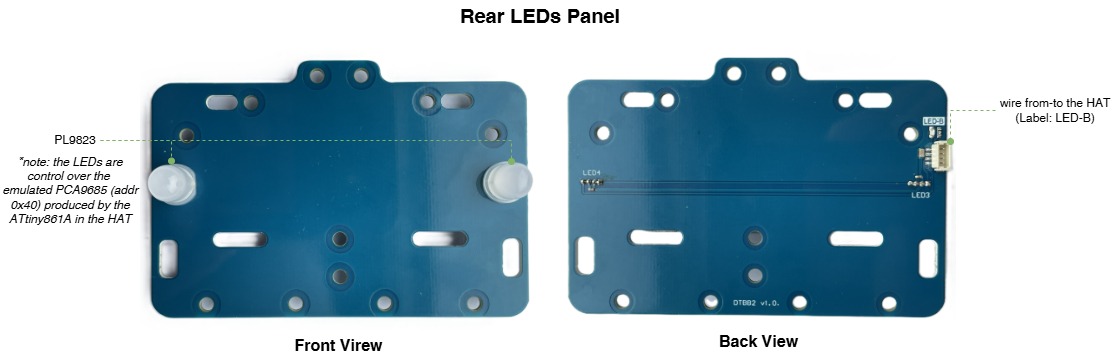

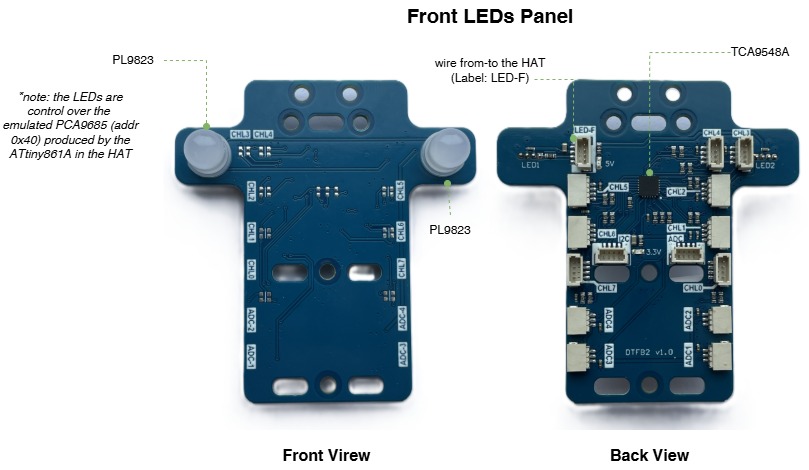

LEDs

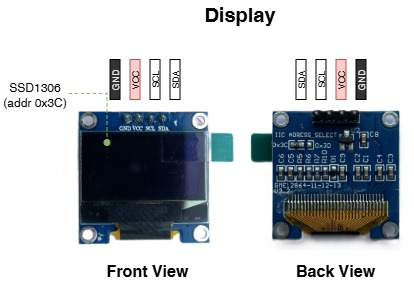

Display

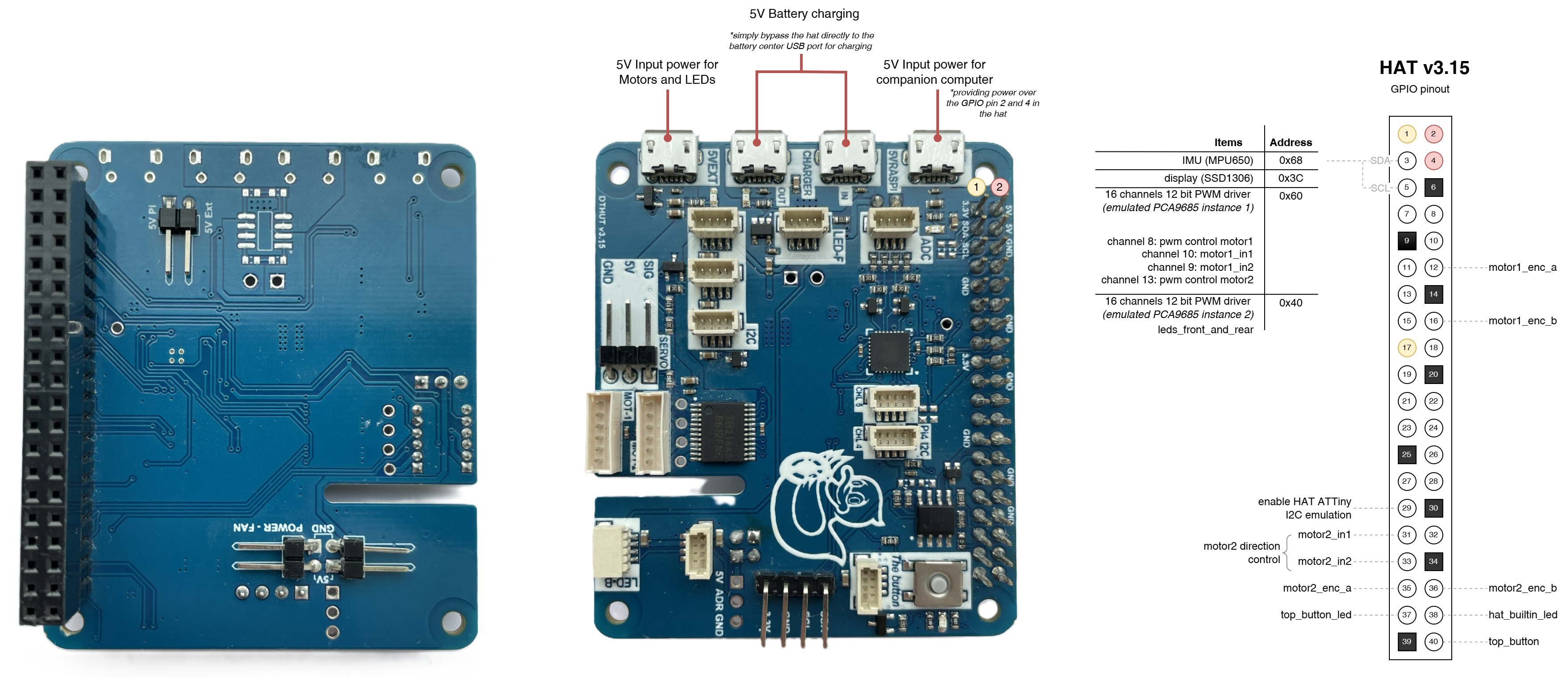

HAT

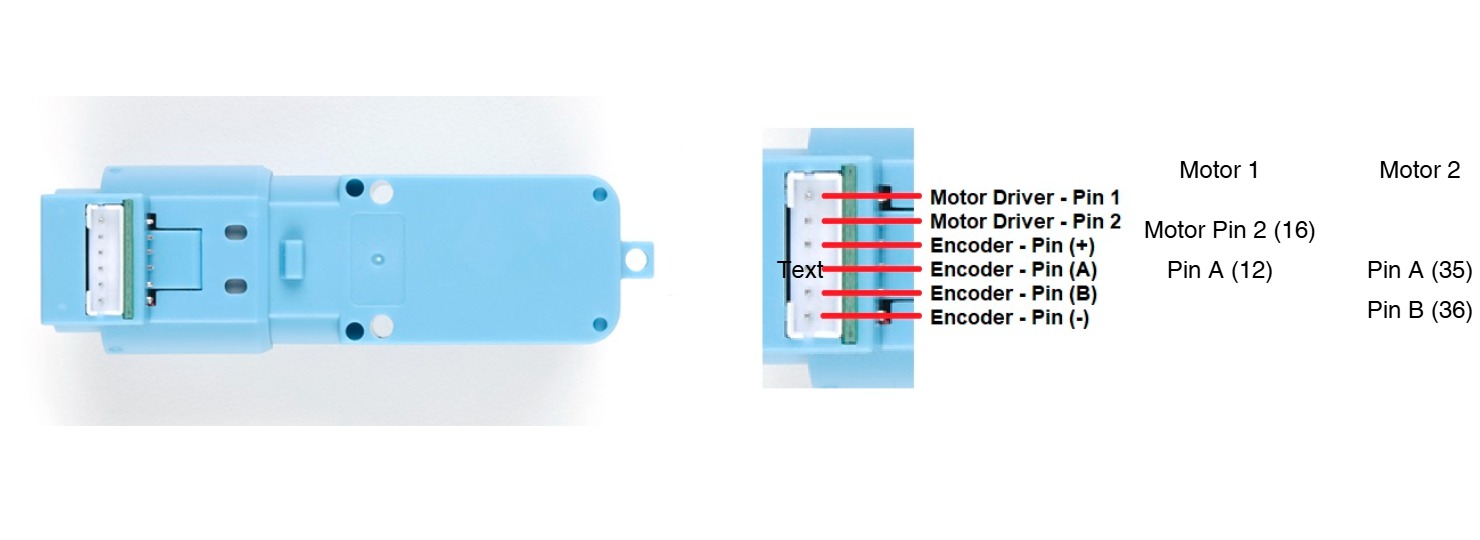

Motors

Battery

TBA

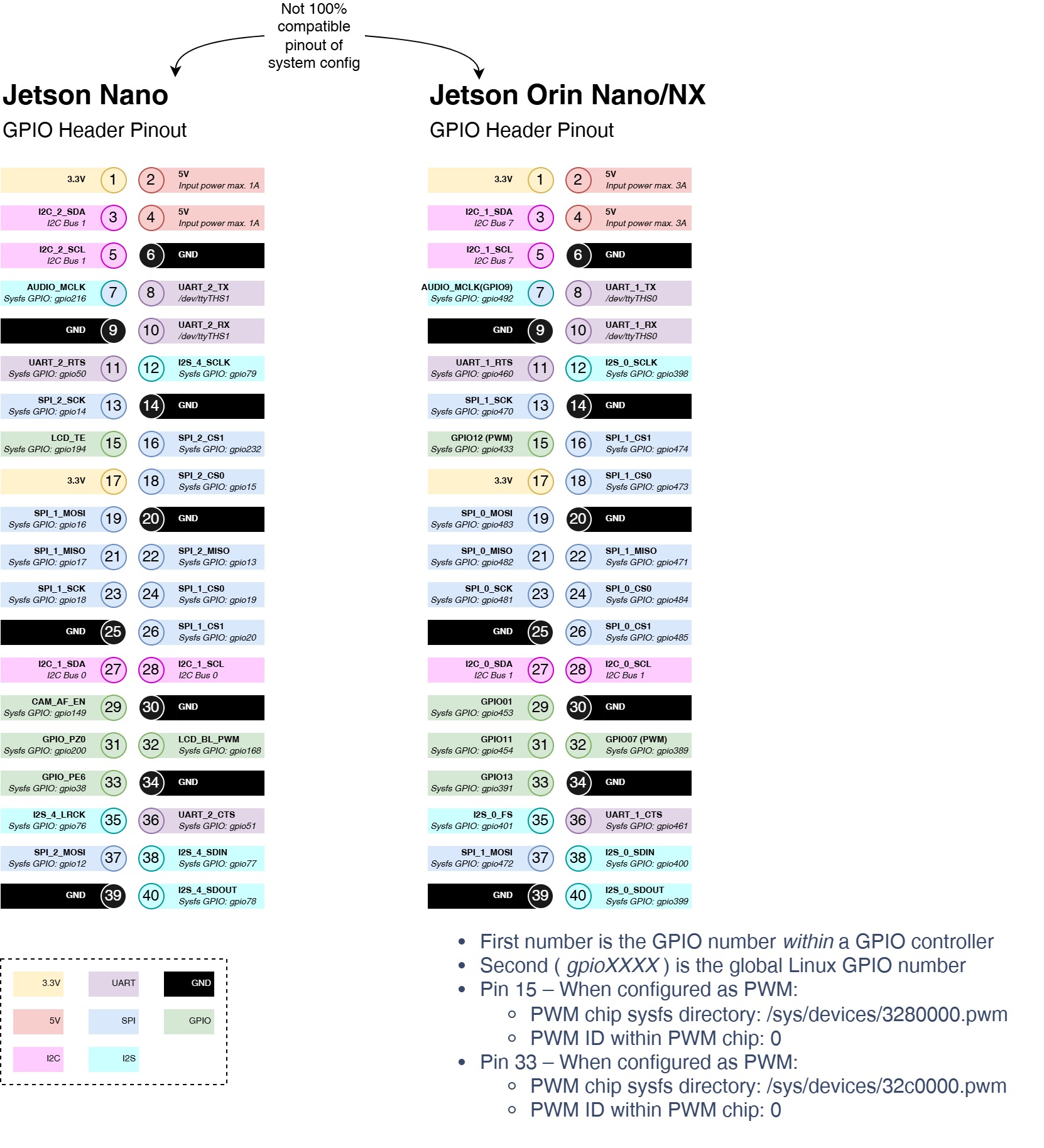

Jetson Nano

Camera

• RPi Camera (G) OV5647, 5MP, Wider Field of View, Adjustable Focus - Product page
• RPi Camera (G) - Waveshare Wiki
